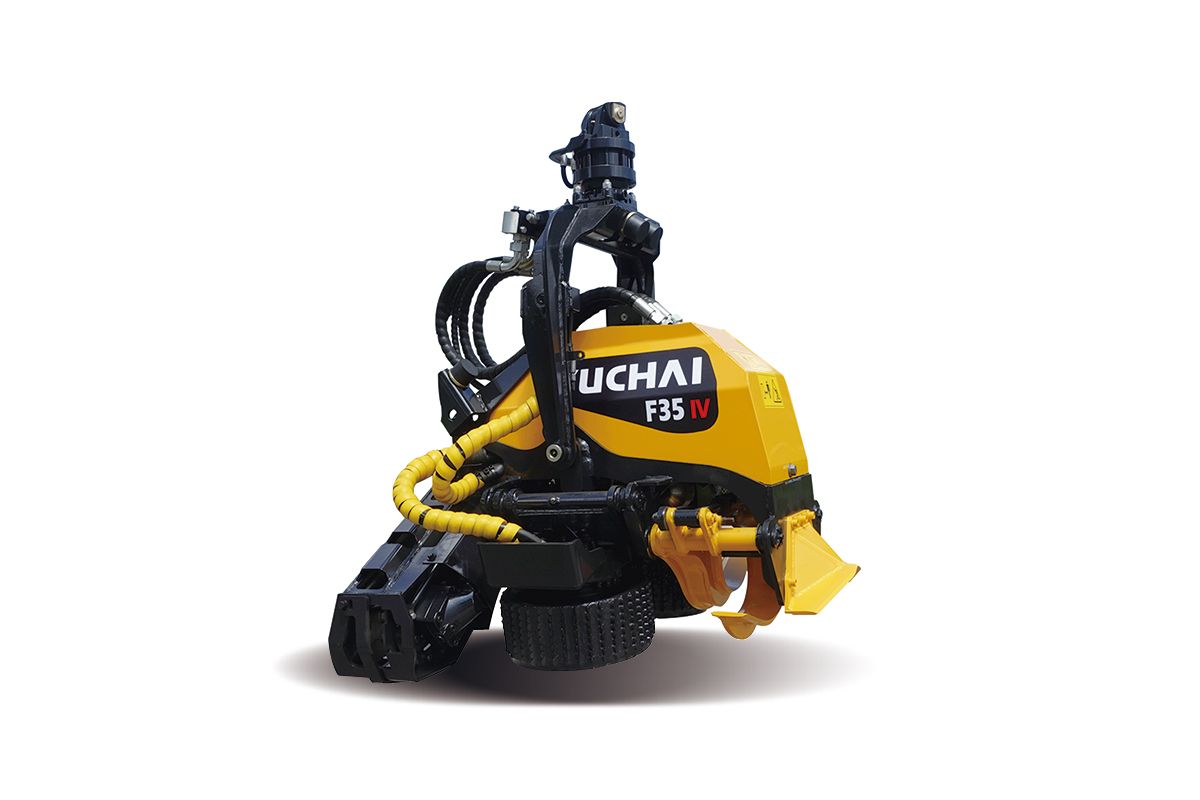

Yuchai F35IV harvester head is a multi-functional forest cutting equipment. Harvester head is suitablefor trees with a diameter of less than 350mm, and is equipped with 3 knives and 2 rollers. This harvester head has better stability, higher yield, wide application range and easy operation. F35IV forestry harvester head can be equipped with an excavator of 8-15 tons.
1.Multifunction
2.High-efficiency
3.Strong power
4.Low consumption
5.Easy operation
6.Simply maintenance
Specifications
| F35Ⅳ | ||
| Chain saw | ||
| Chainsaw maximum cutting diameter | mm | 350 |
| Guide bar length | mm | 457.2（18 in） |
| Chain pitch | mm | 0.404 |
| Capacity of chain oil tank bar | L | 3.4 |
| Feeding | ||
| Rollers quantity | 2 | |
| Rollers diameter | mm | 371 |
| Max. opening of rollers | mm | 400 |
| Max. feed force | KN | 16 |
| Max. feed speed | m/s | 0~4.1 |
| Delimbing knife | ||
| Knives qty | 2+1 | |
| Diameter tip-to-tip | mm | 330 |
| Front knives max. opening | mm | 480 |
| Rear knives max. opening | mm | / |
| Hydraulic requirement | ||
| Operating hydraulic | MPa | 25 |
| Flow required | L/min | 150~180 |
| Power required | KW | 40~60 |
| Operating vdtage | V | 24 |
| Control system | YUCHAI | |
| Application | ||
| For Excavator | T | 8~15 |
| Technical specification | ||
| Width（head closed/head open） | mm | 870/1130 |
| Length | mm | 1140 |
| Height | mm | 1100 |
| Weight | kg | 600 |

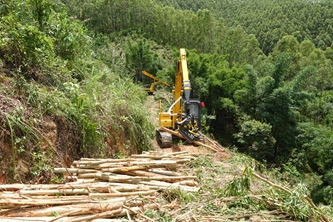

Gallery
