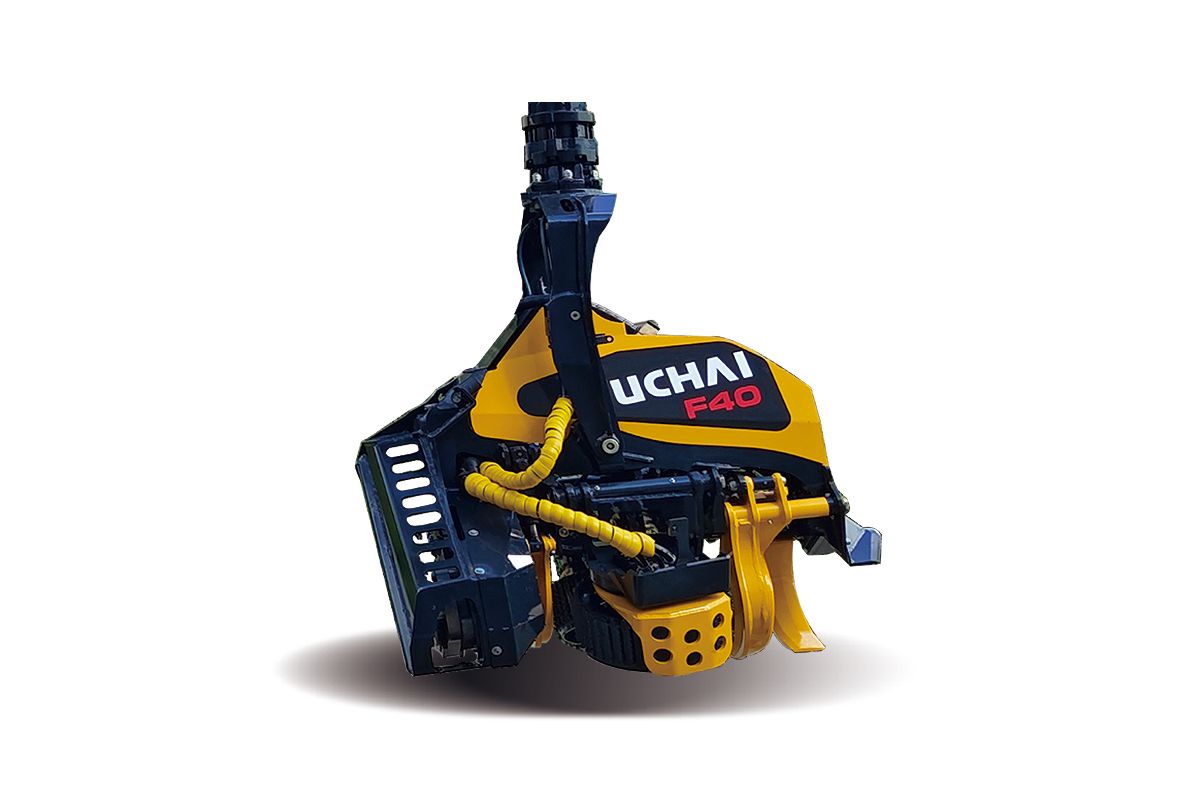

Yuchai F40 Harvester Head

Yuchai F40 Harvester Head

Yuchai F40 harvester head is a multi-functional forestcutting equipment. Harvester head is suitable for treeswith a diameter of less than 400mm, and is equippedwith 5 knives and 3 rollers. This machine has betterstability, higher yield, wide application range and easyoperation. The machine can be equipped with anexcavator of 8-15 tons.

1.Multifunction

2.High-efficiency

3.Strong power

4.Low consumption

5.Easy operation

6.Simply maintenance

Yuchai F40 Harvester Head

Yuchai F40 Harvester Head

Specifications



F40
Chain saw

Chainsaw maximum cutting diametermm400
Guide bar lengthmm508(20 in)
Chain pitchmm0.404
Capacity of chain oil tank barL3.4
Feeding

Rollers quantity
3
Rollers diametermm371
Max. opening of rollersmm400
Max. feed forceKN16
Max. feed speedm/s0~4.1
Delimbing knife

Knives qty
2+2+1
Diameter tip-to-tipmm330
Front knives max. openingmm480
Rear knives max. openingmm510
Hydraulic requirement

Operating hydraulicMPa25
Flow requiredL/min150~180
Power requiredKW40~60
Operating vdtageV24
Control system
YUCHAI
Application

For ExcavatorT8~15
Technical specification

Width(head closed/head open)mm870/1215
Lengthmm1290
Heightmm1263
Weightkg680
