1.Applicable to all terrain
2.Chinese three emission grade
3.King size cabin
4.Ultra high work efficiency
5.Excellent grabbing capacity
6.Durable metal covering
7.Efficient cooling and heating air conditioning
8.Reliable and durable structural parts
9.Convenient maintenance
Specifications
| Technical Specification | |||||
| Basic | parameter | ||||
| Machine weight Standard bucket capacity Standard bucket width | 7800kg 0.26m³ 845mm | ||||
| Performance | parameter | ||||
| Engine Engine power Max.Gradeabilty Max digging force of stick Max digging force of bucket Traveling speed Max hauling force Slewing speed ofplatform | YANMAR 44.4/2100 kW/rpm 35° 38kN 56kN 2.6/3.9 km/h 68 kN 9~13 rpm | ||||
| Operating parameter | |||||
| Maximum loading height5140mm | |||||
| Max.work radius of max.loading height 2930mm | |||||
| Maximum working radius (height 2.5m) 5500mm | |||||
| Max.jaw opening 1550mm | |||||
| Maximum holding circle of wood grab φ500mm | |||||
| Transportation dimension | |||||
| Overall length (transportation status) Overall width(transportation status) Overall height (transportation record) | 6240mm 2260mm 2700mm | ||||
| Other Parameter | |||||
| Width of track Length of track Track shoe width | 2150mm 2783mm 450mm | ||||
| Minimum ground dearance Height of counterweight from the ground Tail tuming radius Track wheelbase Fuel tank capacity Hydraulic tank capacty | 386mm 800mm 1840mm 2200mm 151L 125L | ||||

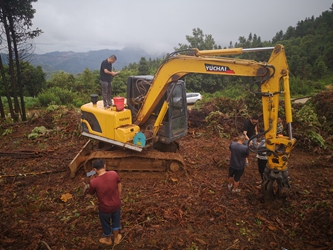

Gallery
