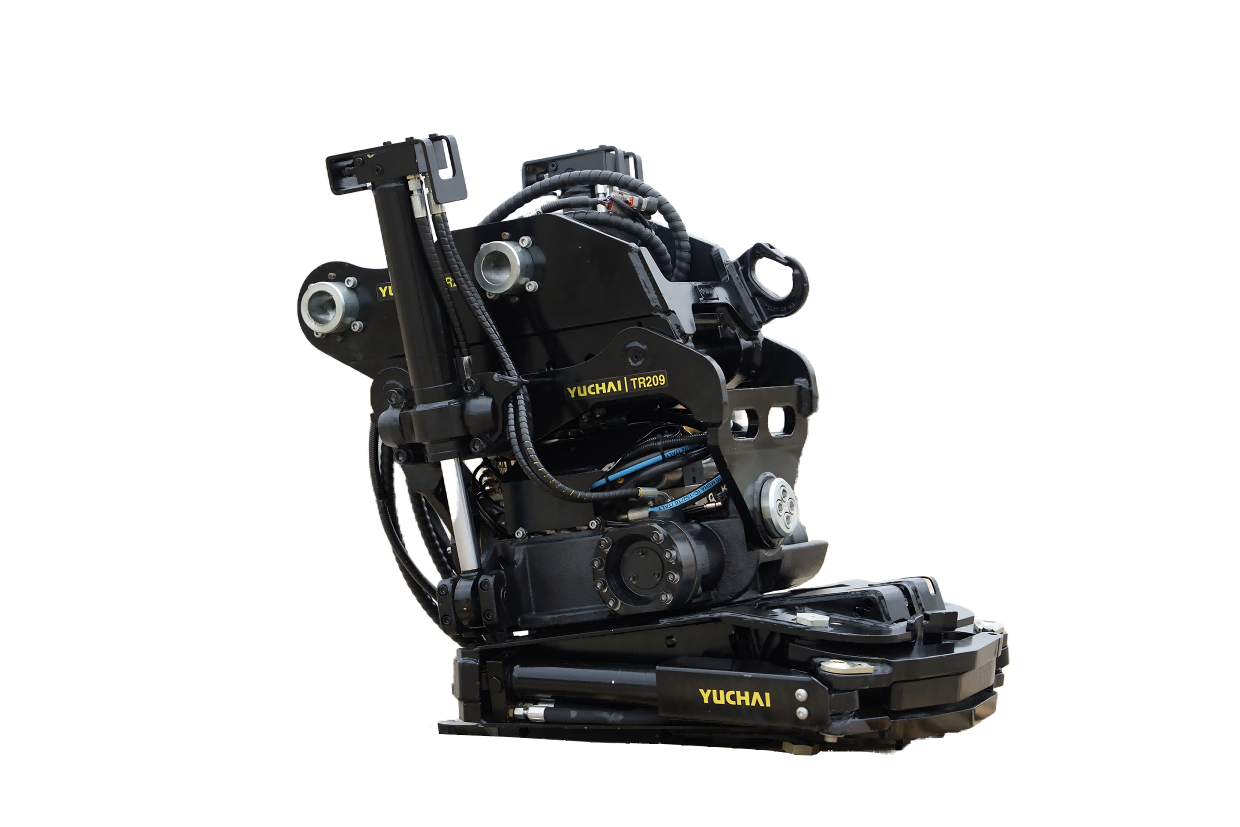

The TR209 Tiltrotator is primarily used for the quick hitch of working attachments (such as buckets, hydraulic breakers, hydraulic shears, hydraulic compactors, hydraulic drills, etc.) on hydraulic excavators. It is a connection device that enables tilting, rotating, and gripping functions. Its features include allowing the attached tools to rotate 360° around their axis and tilt ±45° to the left and right around the plane of symmetry of the working device. Additionally, it is equipped with claws for gripping operations. Overall, this enhances the working range of the excavator, extends its functionality, and reduces labor intensity, significantly improving work efficiency and economic benefits.
Specifications
Category | Name | TR209 | |
Performance Parameters | Weight(Kg) | 518 | |
Maximum Supported Machine Weight(Kg) | 9000 | ||
Maximum Output Torque (KN ·m) | 74 | ||
Recommended Maximum Bucket Width(mm) | 1300 | ||
Maximum Working Pressure (MPa) | 22 | ||
Maximum Rotation Speed (rpm) | 10 | ||
Rotation Angle(°) | 360 | ||
Tilt Angle(°) | ±45 | ||
Dimensions(mm) | Total Length(During Transport) | 758 | |
Total Width(During Transport) | 667 | ||
Total Height(During Transport) | 915 |
