1.Euro V engine (Yanmar engine)
2.Load sensive hydraulic system
3.Superior working efficiency
4.Low fuel consumption
5.Standard with Rubber Tracks
Download Brochure
High Configuration

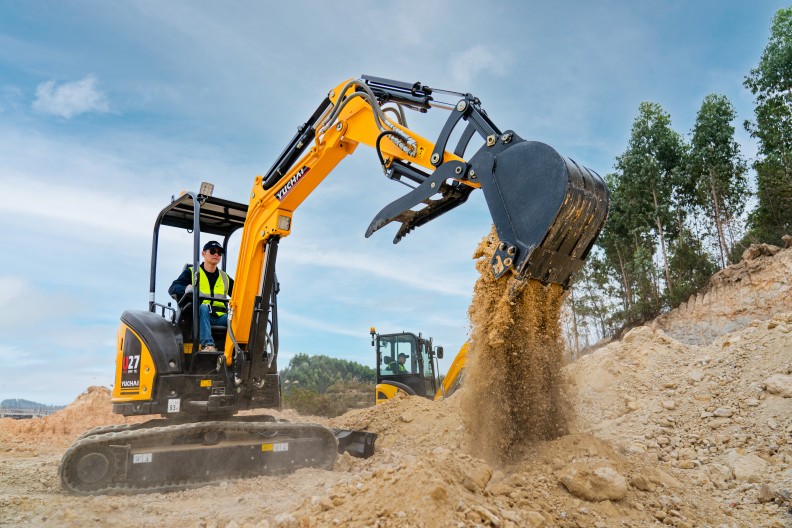

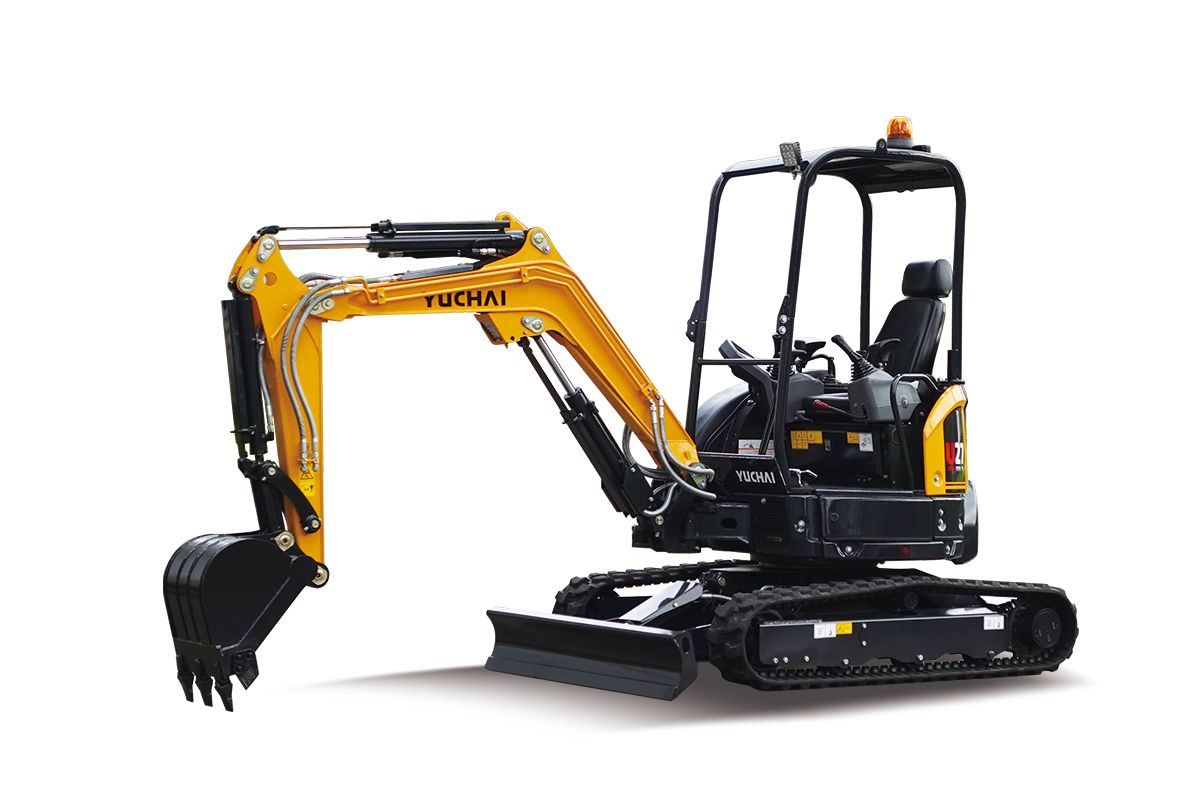

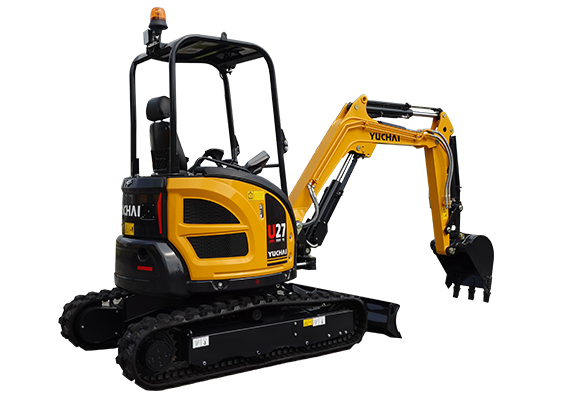

U27 is a zero tail excavator with a compact body, equipped with an international brand Yanmar engine, and a load-sensing valve.

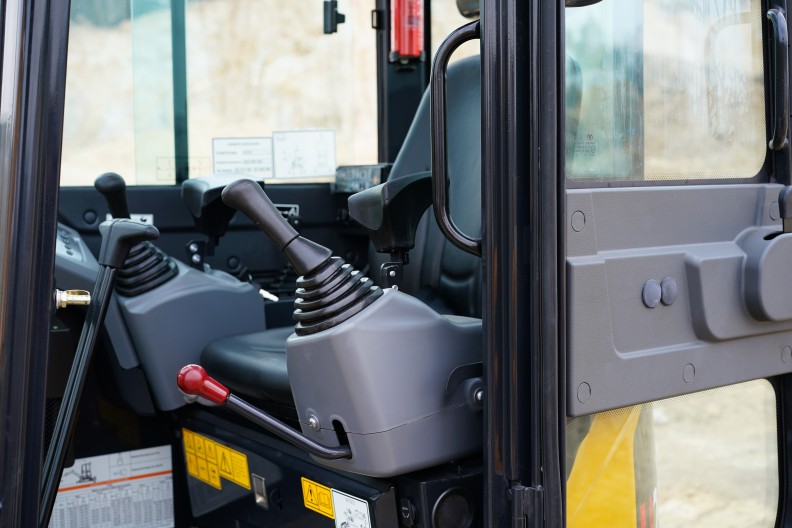

Pilot Control
With left and right pilot control operation, smooth action and better stability. Easy maintenance and low operating cost.

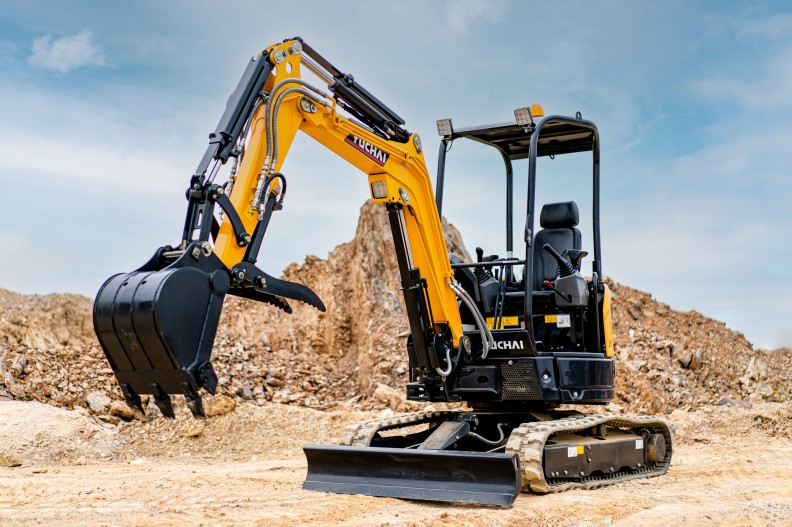

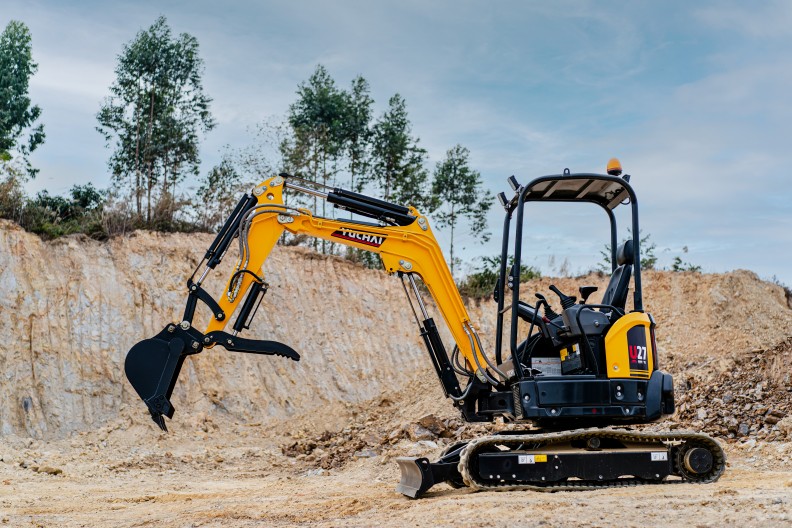

Zero Tail
The overall body does not exceed the width of both sides of the crawler, so that the excavator will not be hindered from turning when turning. Easily operate in narrow space..
YUCHAI Mini Excavator
Founded in 1989, Yuchai Heavy Industry is the earliest excavator company in China to produce mini excavators and sell them to the world. It is the largest production and export base of small excavators in China and a national high-tech enterprise.
More than 30 years of innovation and development, providing customers with high quality assurance!

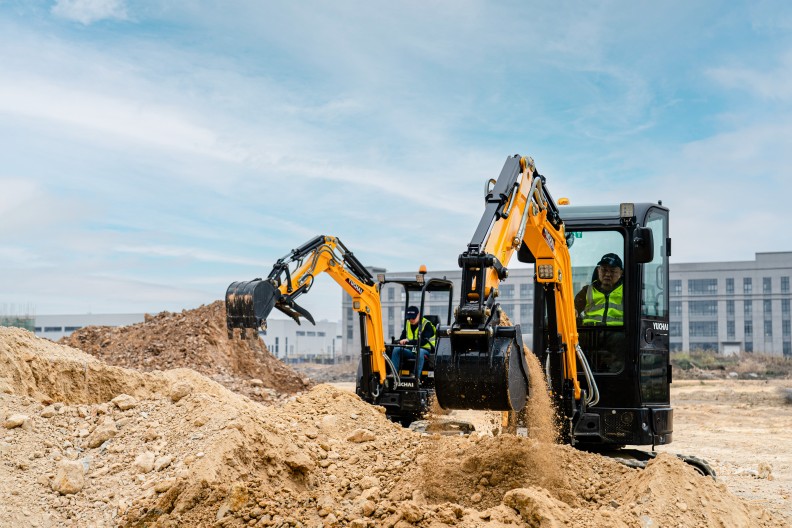

Excellent Operation Performance
•Coordinated and smooth composite action.
•Precise control and easy operation.
•Powerful walking mechanism ensure smooth driving.
•Maintain stability without any nodding or tail-lifting phenomena.
•No impact, and no abnormal noise.
Yanmar Engine
Naturally aspirated engine.
Power/speed: 14.5kW/2400rpm.
Maximum torque/speed: 62.7~68.4Nm/1800rpm.
Engine with muffler. Aluminum, oil-dispersed, water-dispersed parallel radiator.

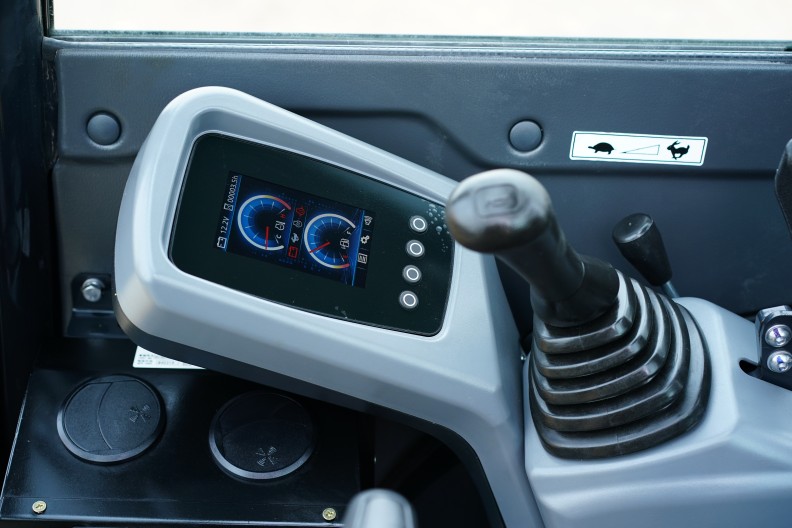

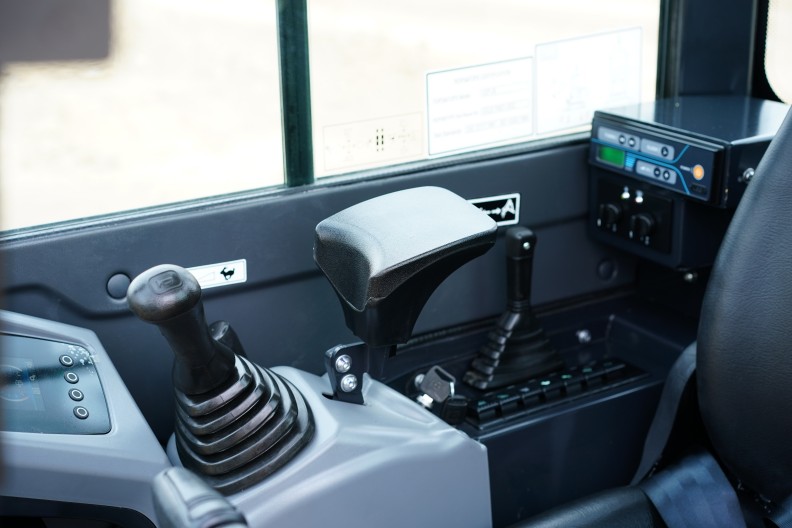

Full Pilot Control
More comfortable driving experience and smoother movement

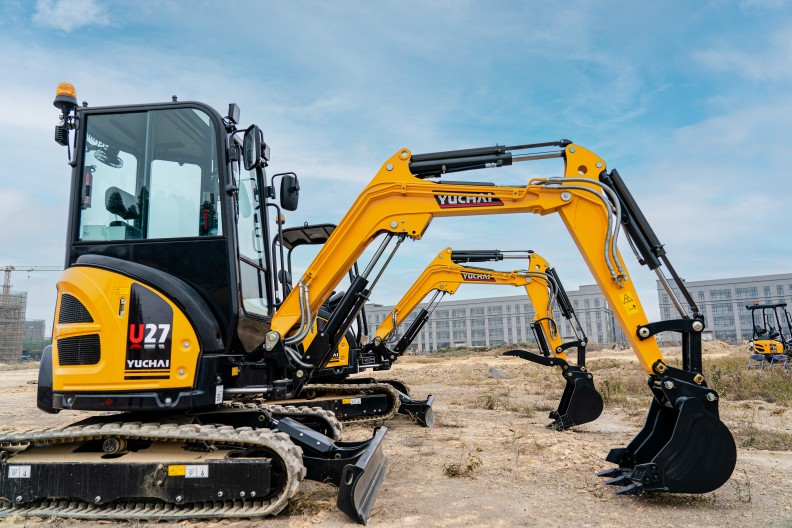

Interchangeable

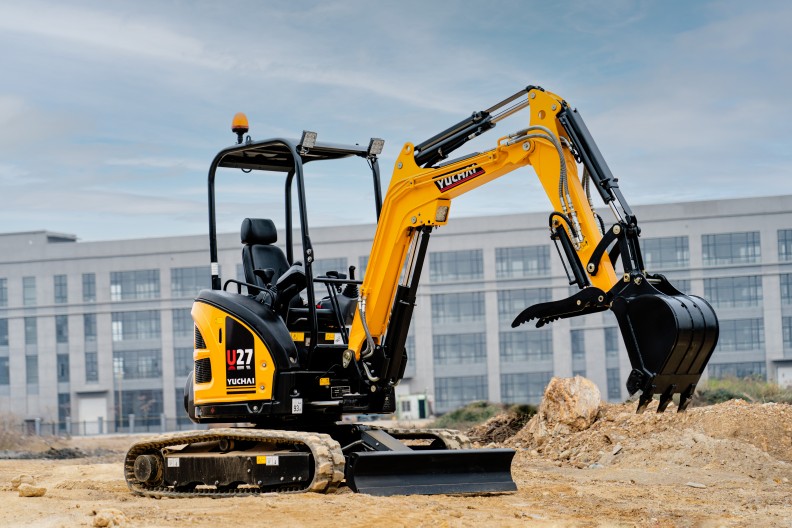

Two-column shed → four-column shed, realizing the installation and exchange of canopy and cab.

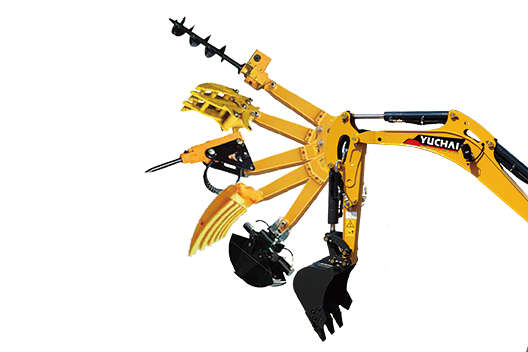

Various Attachments
More than ten types of attachments
Hydraulic hammers, buckets, quick change devices, wood grabbers, simple grab pliers clearing bucket, clamshell bucket, drilling tool, lawn mower, etc.
More than 40 key working conditions are applied, with a wide range of working conditions.
Specifications
| Excavator Model | U27 | |
| Basic parameter | ||
| Machine weight | kg | 2600 (Canopy) / 2740 (Cabin) |
| Bucket capacity | m³ | 0.09 |
| Width of bucket | mm | 510 |
| Performance parameter | ||
| Engine model | Yanmar 3TNV76 / 3TNV80F | |
| Engine power | kW/rpm | 14.5/2400 / 15.2/2500 |
| Max. Gradeability | 30° | |
| Max. digging force of arm | kN | 14.4 |
| Max. digging force of bucket | kN | 23.1 |
| Traveling speed | km/h | 2.3/4.2 |
| Max. hauling force | kN | 26 |
| Slewing speed of platform | rpm | 10~12 |
| Operating parameter | ||
| Max. digging height | mm | 4170 |
| Max. digging depth | mm | 2540 |
| Max. digging radius | mm | 4520 |
| Max. digging radius on ground level | mm | 4400 |
| Max. dumping height | mm | 2780 |
| Min. slewing radius | mm | 1950 |
| Max. vertical digging depth | mm | 2240 |
| Max. dozer balde heigh | mm | 340 |
| Mzx. dozer blade depth | mm | 355 |
| Transportation dimension | ||
| Overall length | mm | 4110 |
| Overall width | mm | 1500 |
| Overall height | mm | 2490 |
| Other Parameter | ||
| Width of undercarriage | mm | 1500 |
| Length of track | mm | 2040 |
| Width of track | mm | 250 |
| Height between undercarriage and ground | mm | 320 |
| Height between platform and ground | mm | 525 |
| Platform tail turning radius | mm | 750 |
| Length to center of rollers | mm | 1590 |
| Fuel tank capacity | L | 30 |
| Hydraulic oil tank capacity | L | 25 |
| Track gauge | 1590 | |
| Working Pressure | Mpa | 24 |
| Ground Contact Pressure | kPa | 30 |
| Arm length | mm | 1150 |
| Boom length | mm | 2020 |
| Steering head angle | 47° (L) / 74° ® | |
| Flow rate | L/Min | 61.6 |
Container loading and delivery

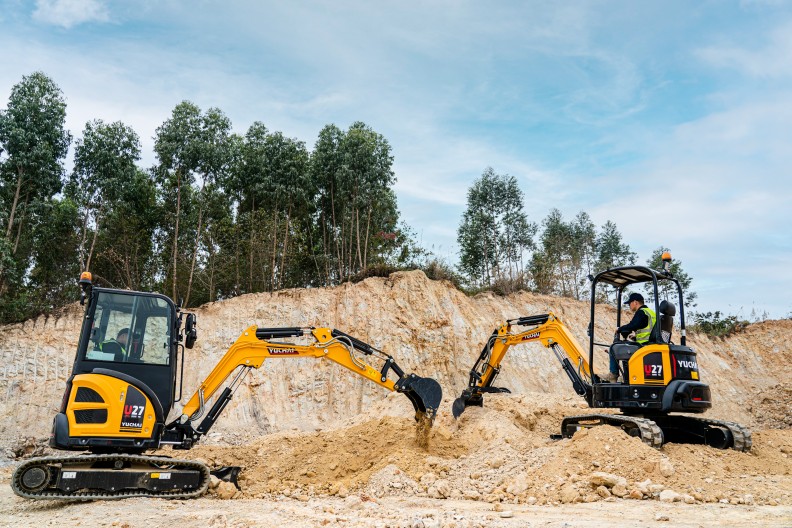

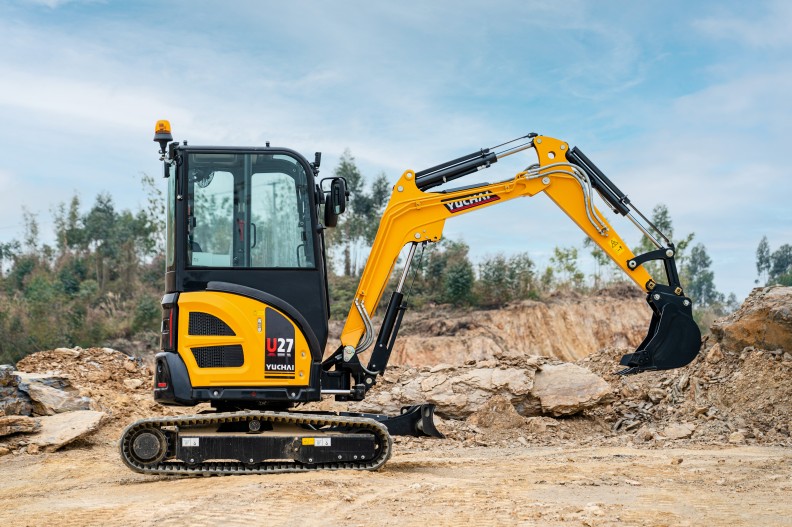

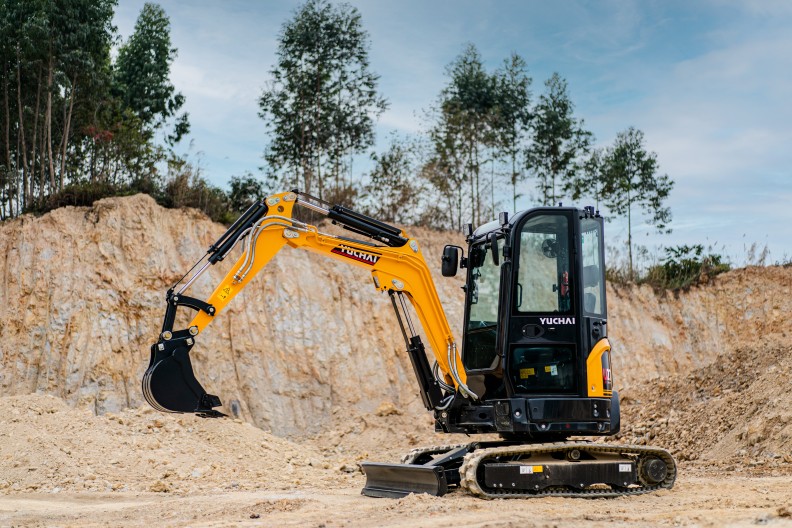

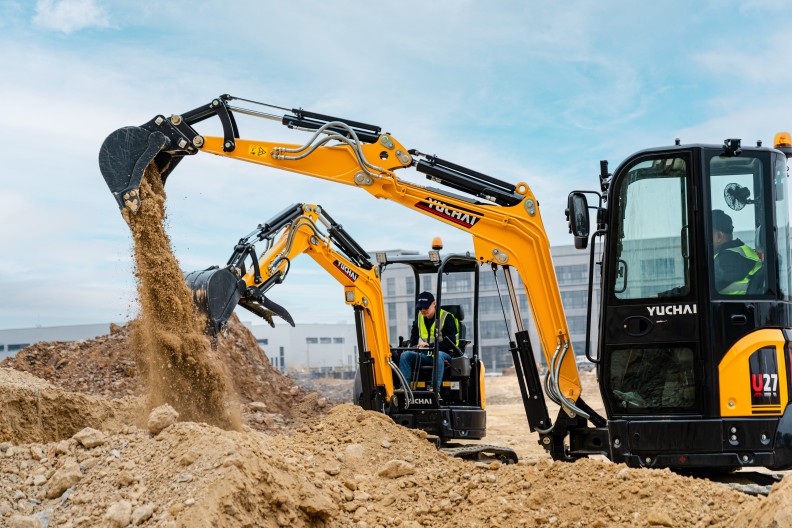

Gallery
