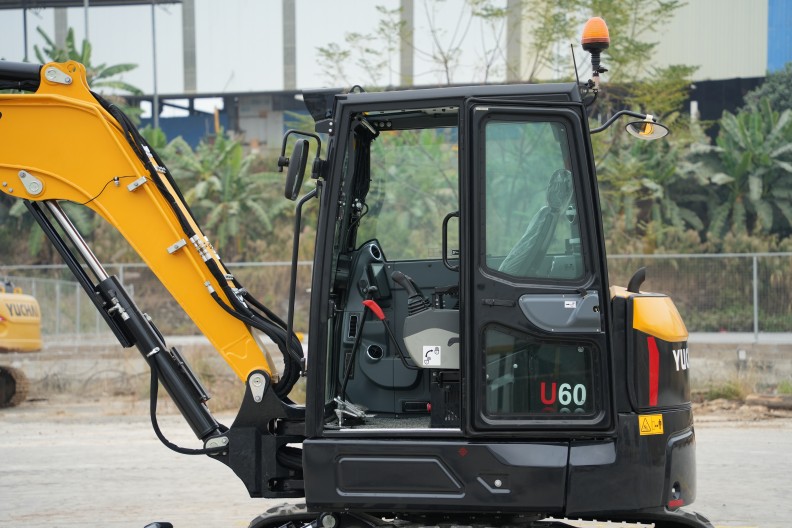

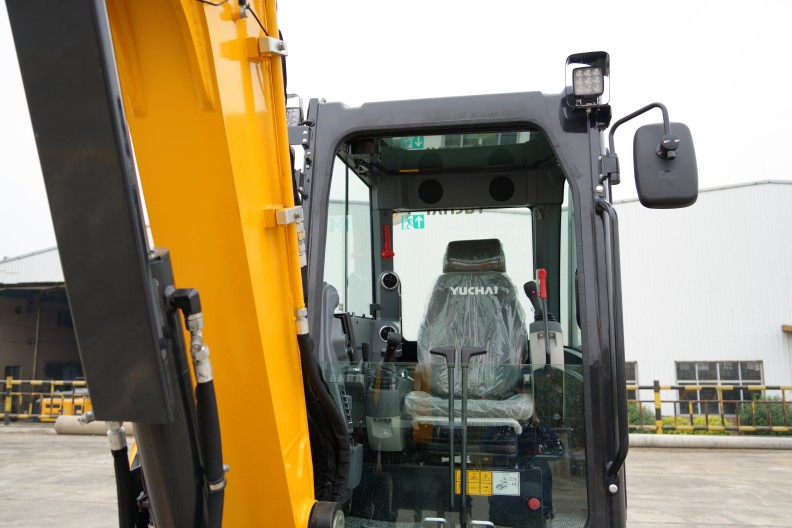

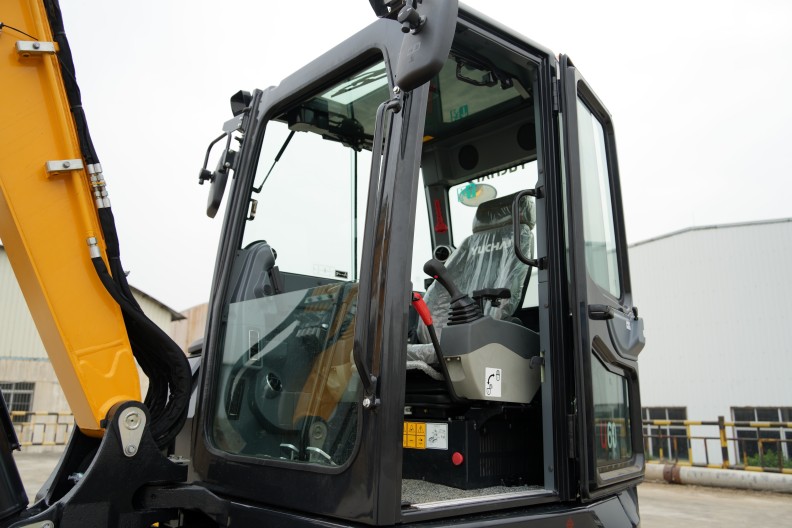

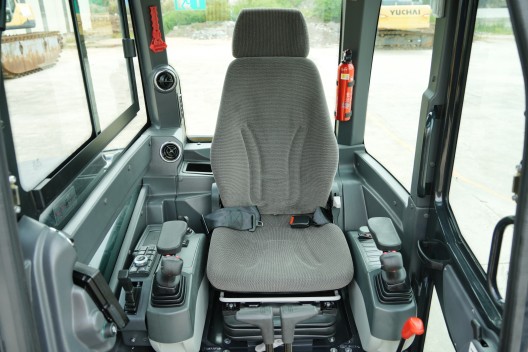

l ROPS/FOPS certified spacious cab
l Excellent hydraulic action coordination
l 1 button switch forISO/SAE mode
l Floating bulldozer blade

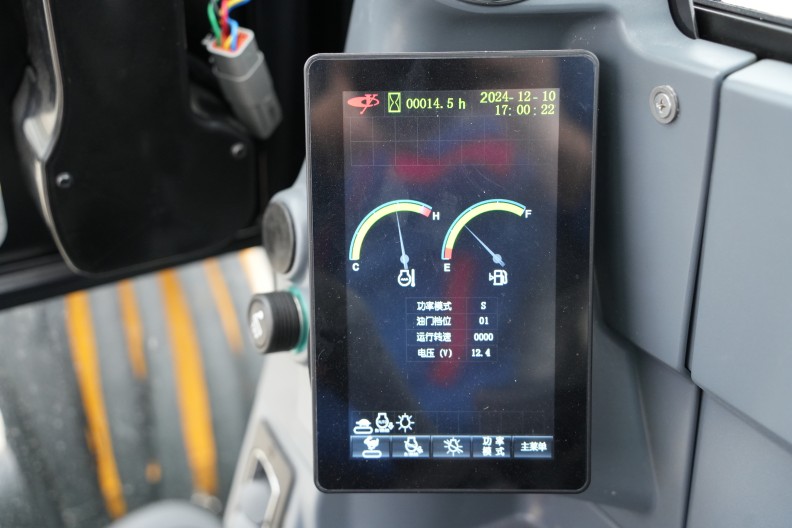

l Intelligent diagnosis system.Integrated Control Buttons
l Arm, boom ANTI-DROP valve
Specifications

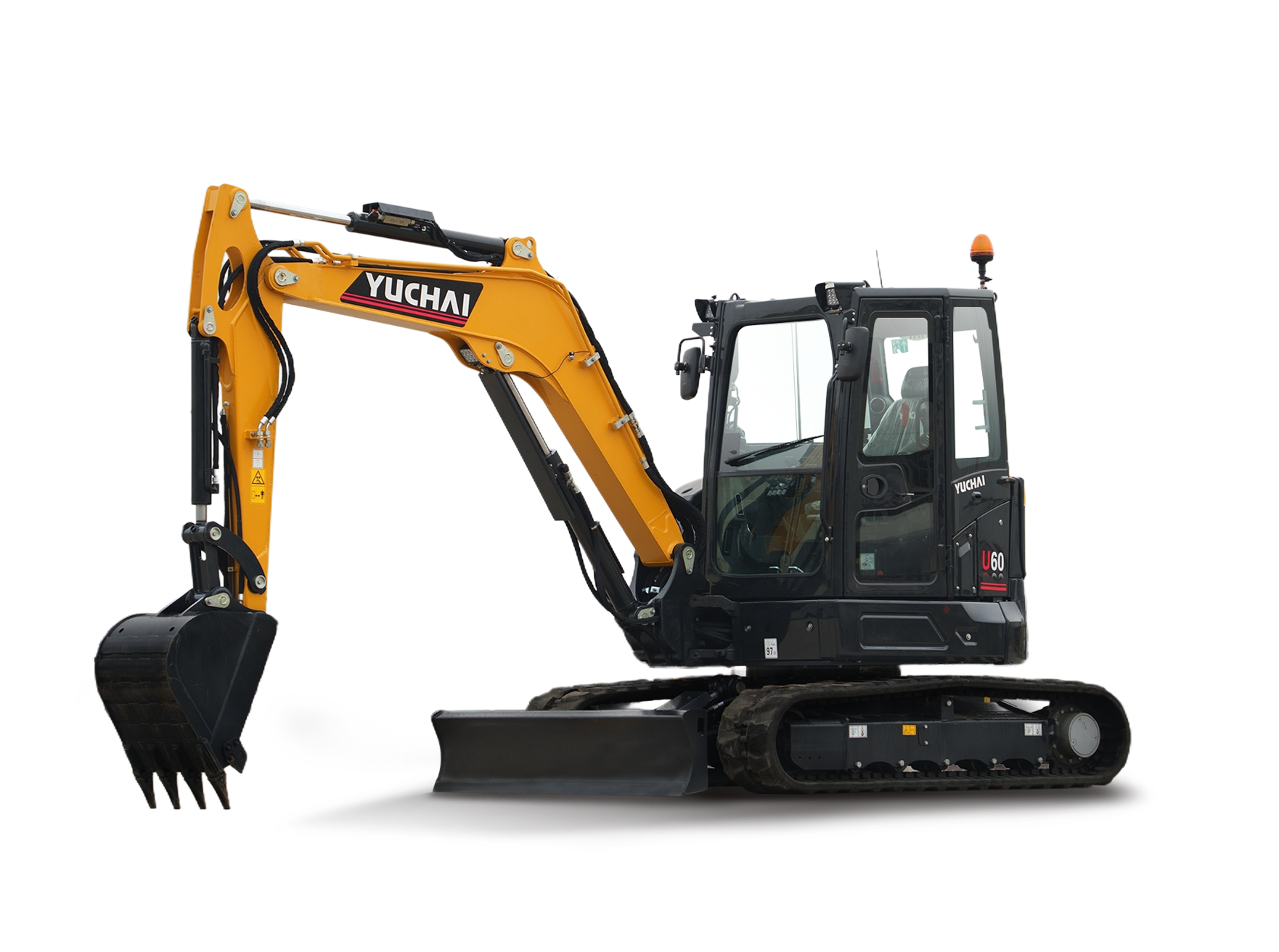

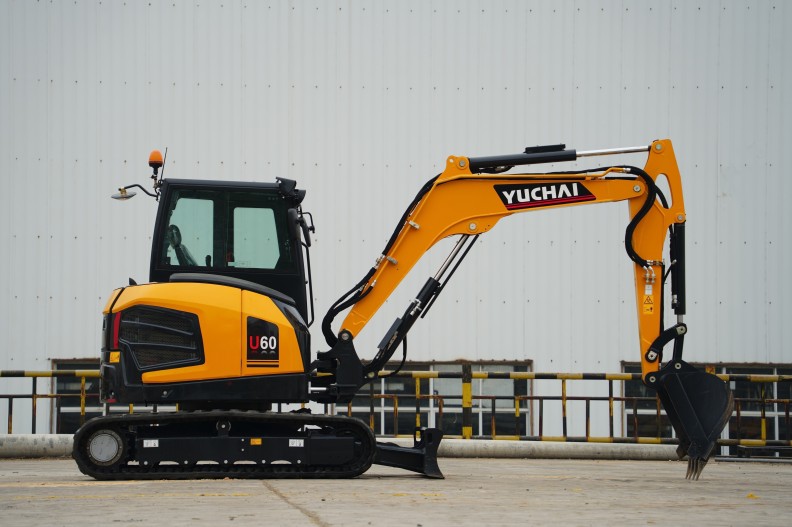

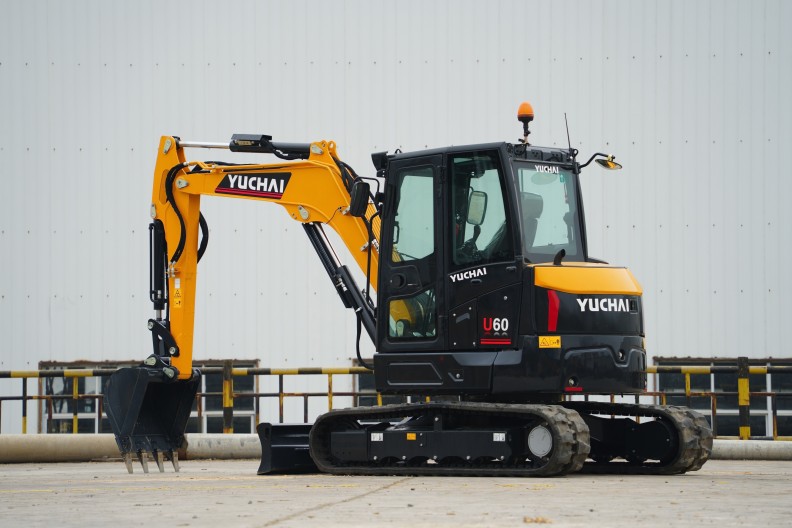

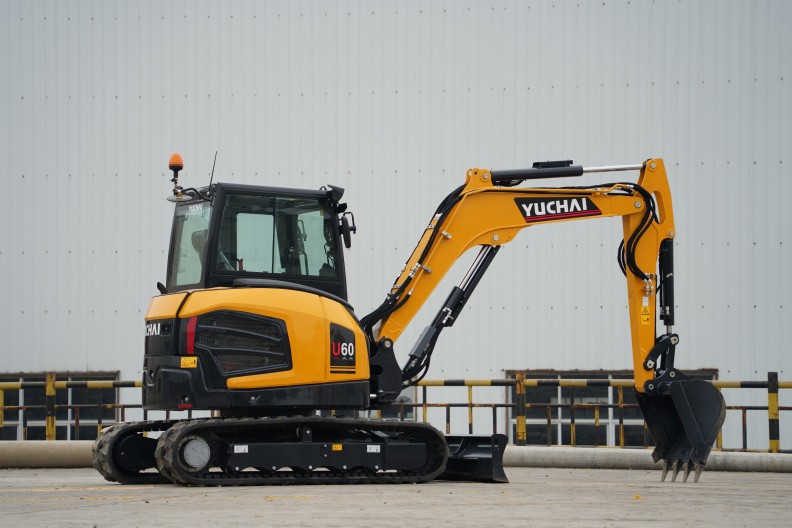

Excavator Model | U60 | |
Basic parameter | ||
Machine weight | kg | 2600 (Canopy) / 2740 (Cabin) |
Bucket capacity | m³ | 0.09 |
Bulldozer Blade | mm | 1960×420 |
Performance parameter | ||
Engine model | Kubota V2607 (EuroⅤ /Tier 4F) / | |
Engine power | kW/rpm | 35/2200 / 30.7/2200 |
Max. Gradeability | 35° | |
Max. digging force of arm | kN | 26 |
Max. digging force of bucket | kN | 45 |
Traveling speed | km/h | 3.6/2.2 |
Max. hauling force | kN | 46.5 |
Slewing speed of platform | rpm | 9.2 |
Operating parameter | ||
Max. digging height | mm | 5670 |
Max. digging depth | mm | 3635 |
Max. digging radius | mm | 6190 |
Max. digging radius on ground level | mm | 6055 |
Max. dumping height | mm | 4015 |
Min. slewing radius | mm | 2550 |
Max. vertical digging depth | mm | 2985 |
Transportation dimension | ||
Overall length | mm | 5545 |
Overall width | mm | 1960 |
Overall height | mm | 2550 |
Other Parameter | ||
Chassis Width | mm | 1960 |
Length of track | mm | 2500 |
Width of track | mm | 400 |
Ground clearance of undercarriage | mm | 310 |
Ground clearance of platform | mm | 625 |
Platform tail turning radius | mm | 1065 |
Length to center of rollers | mm | 1990 |
Fuel tank capacity | L | 73 |
Hydraulic oil tank capacity | L | 70 |
Steering head angle | 70(L)/53(R)° |

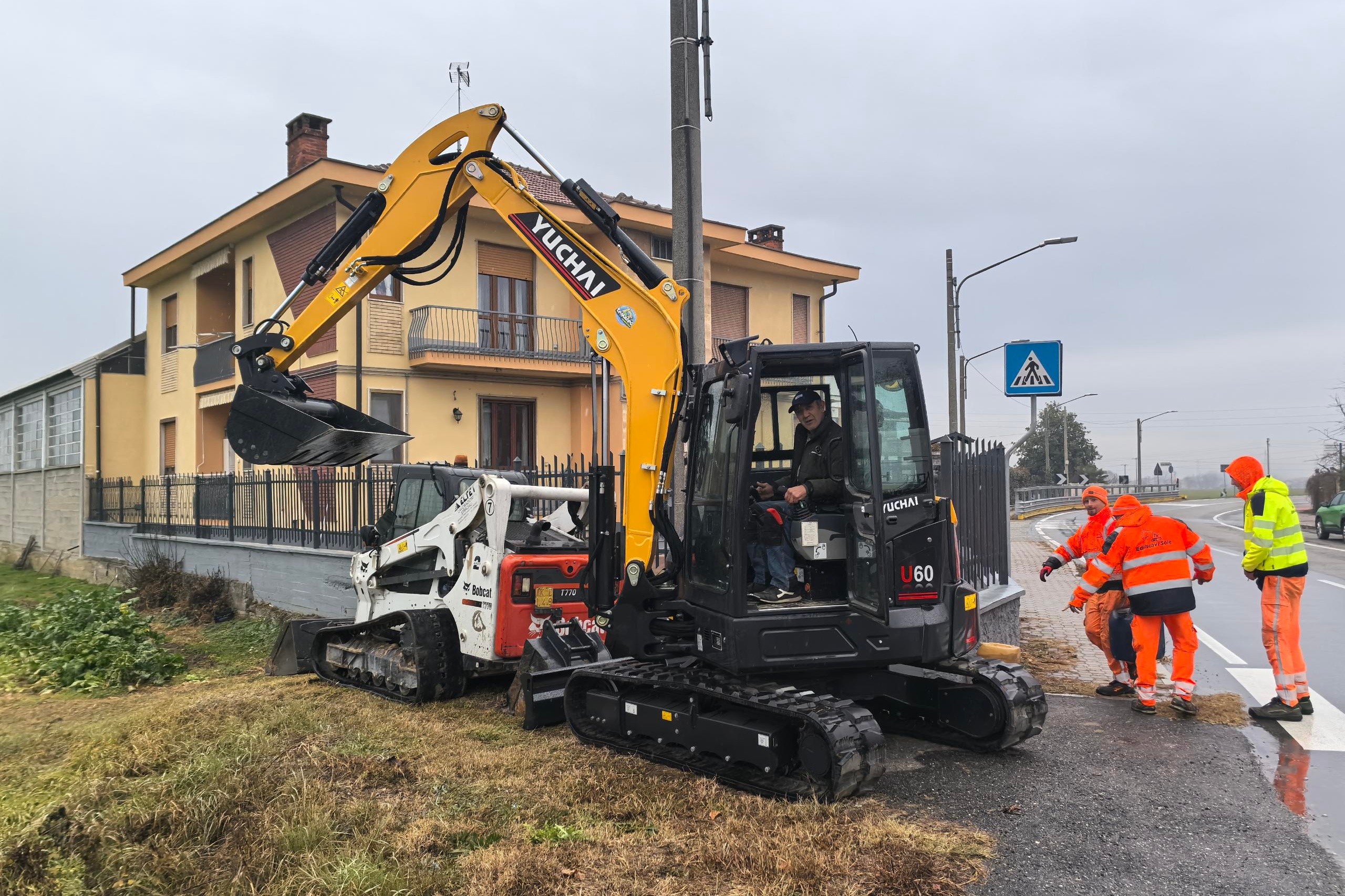

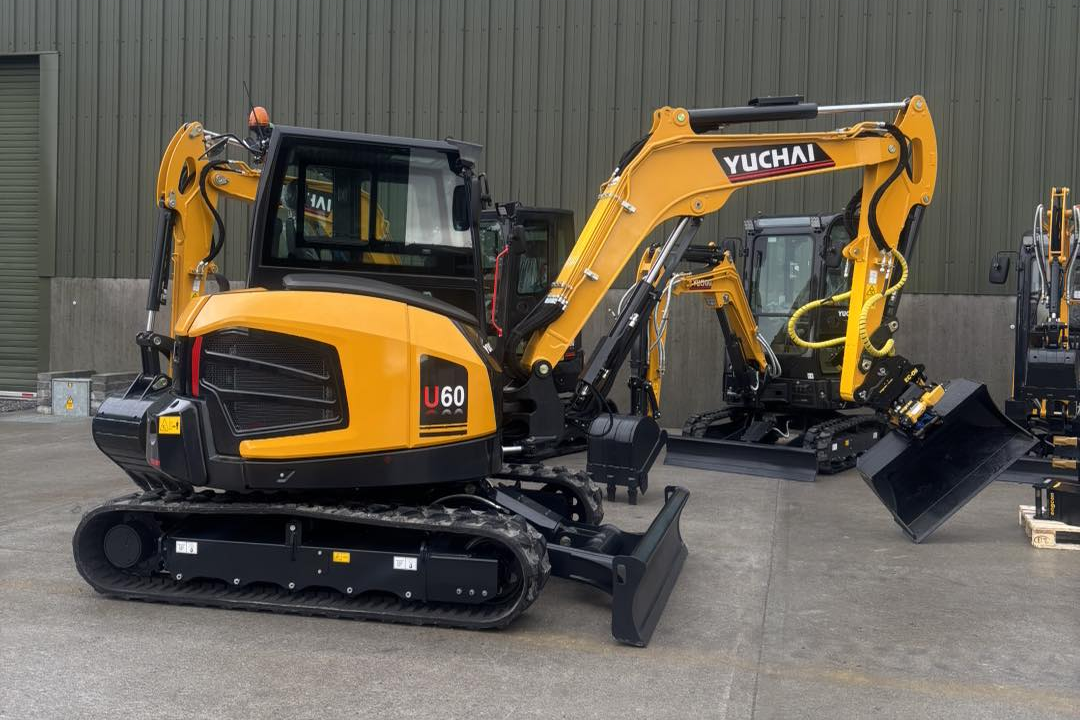

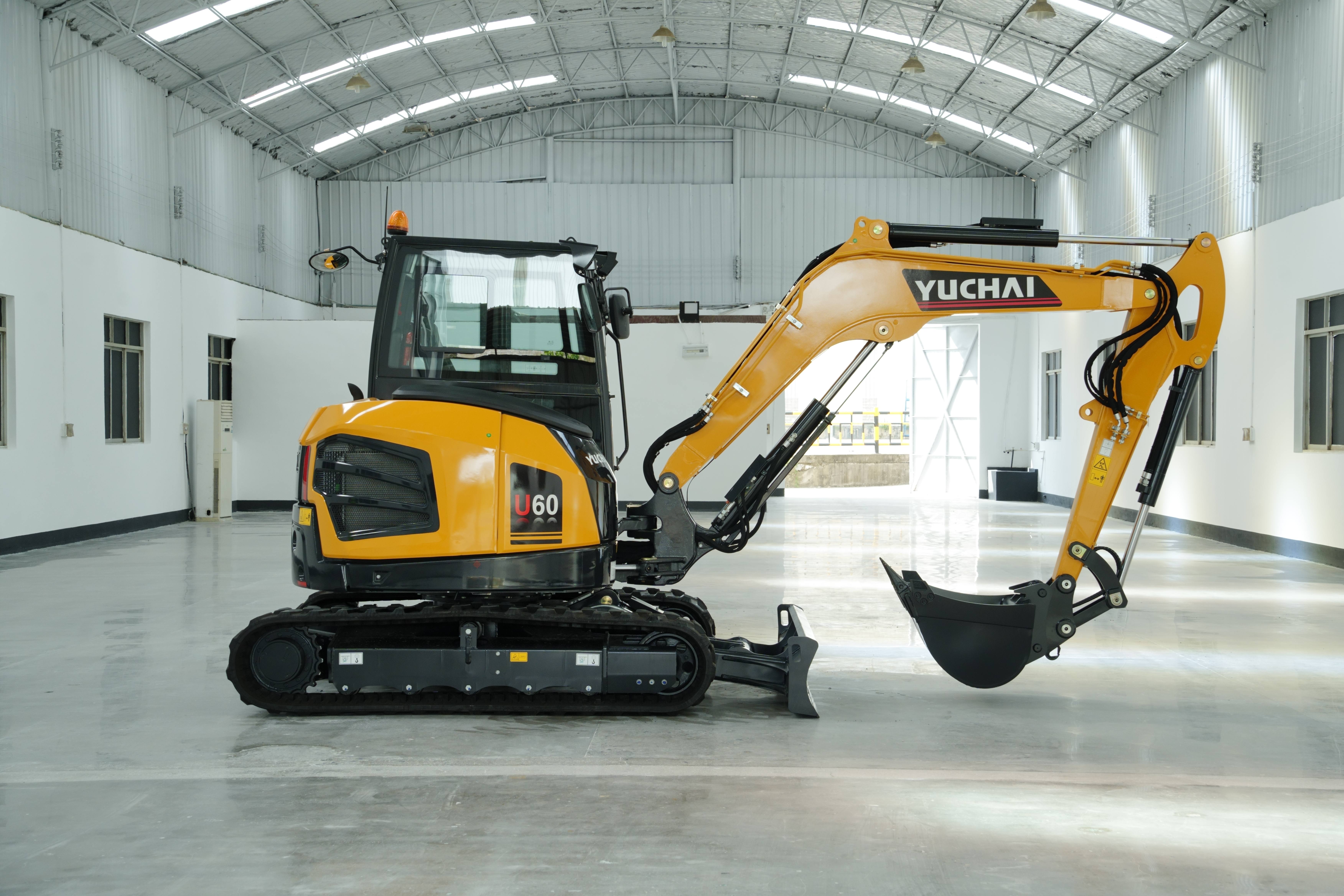

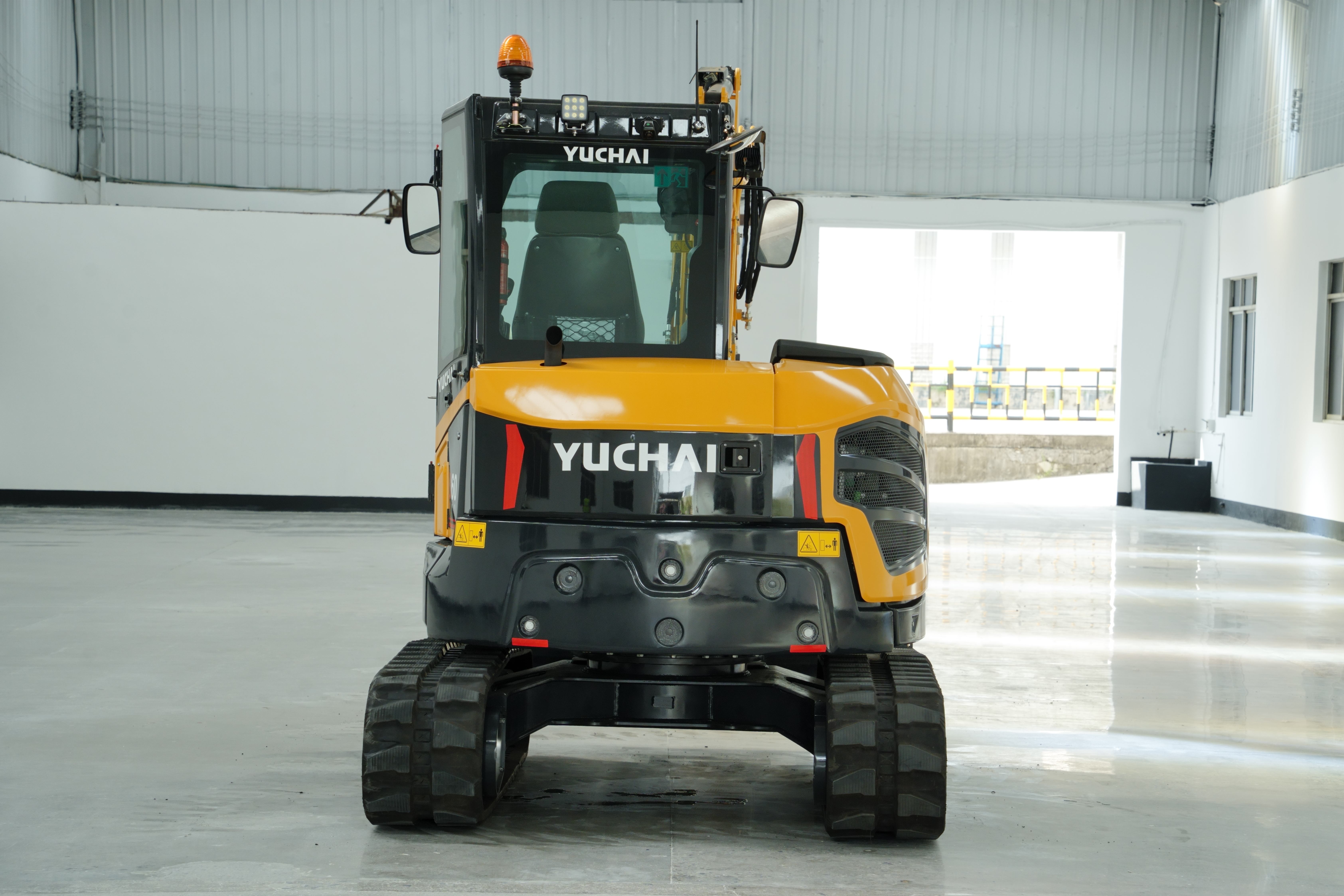

Gallery
