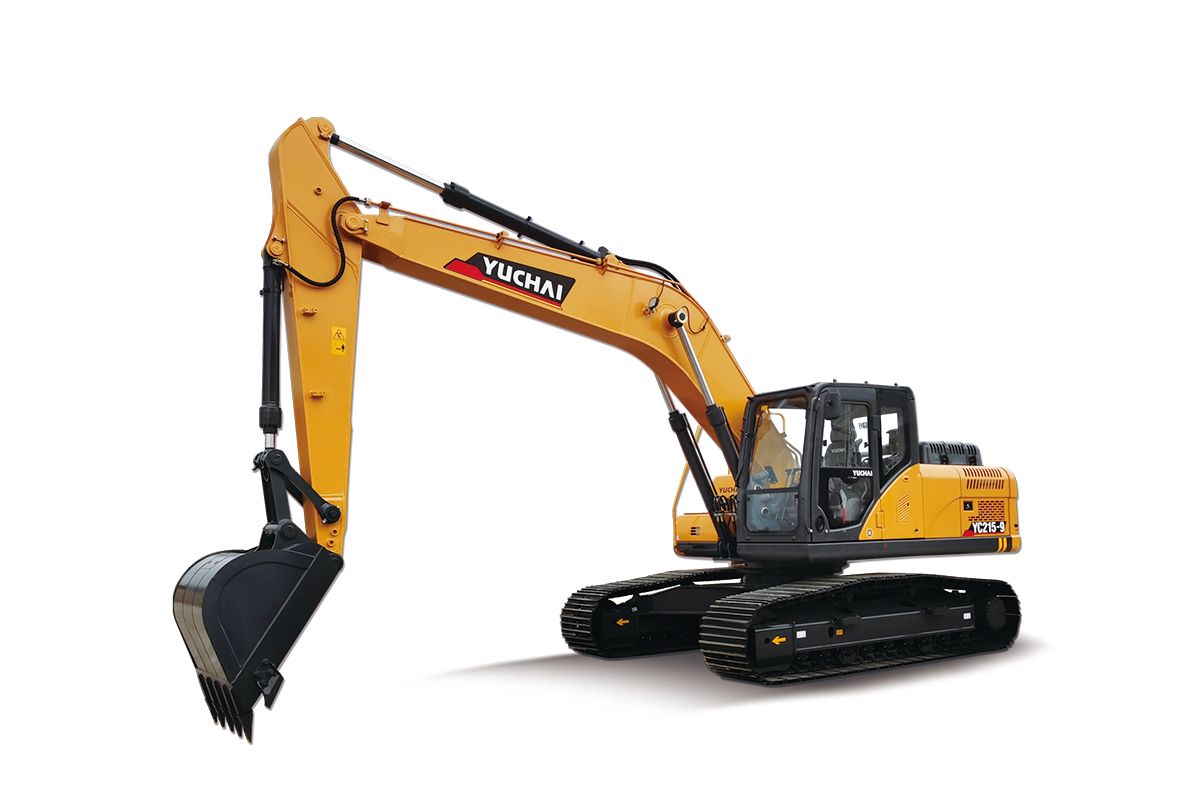

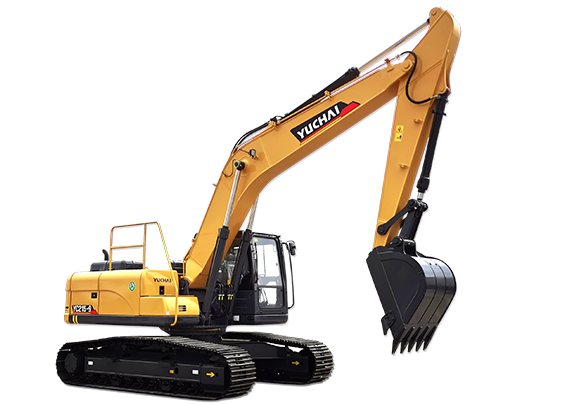

The YC215 mid-sized excavator brings the power and performance of a full-sized excavator in a smaller form for improved jobsite accessibility and efficiency. With its advanced technology, comfortable cabin, and safety features, the YC215 is the ideal choice for your excavation needs.
1.Yuchai Engine
2.Structural Reliability
3.Excellent Performance
4.High Eficiency
Powerful Yuchai engine
YC215 is equipped with an engine independently developed by Yuchai, which has strong torque, sufficient power reserve, low fuel consumption, fast response and better fuel efficiency.
International brand hydraulic system
The tonality of compound movements is smooth. The hydraulic valve is stable, efficient and reliable.
High strength cab
The structural beam of the cab is thickened and enlarged, which greatly improves the strength of the cab, reliably prevents falling objects and rolling injuries, and makes the driver safer.
YUCHAI Little Dig
YUCHAI Heavy Industry co., Ltd. was founded in 1989. It is the first excavator enterprise in China to produce micro-excavators and sell them to the world. It is the largest small excavator production and export base in China and a state-level high-tech enterprise.
More than 30 years of innovation and development, to ensure high quality customers!
The strongest excavation force at the same level
YC215-9 Midi Excavator has a maximum traction force of 195kN, excellent hoisting capacity, and can easily lift heavy objects. The maximum digging force of the bucket is 150kN, and the bucket capacity is 0.9 m. The digging work is very efficient.a series of tests of high temperature and high humidity, high strength in plateau, low temperature and severe cold environment.
Brand new cab interior
The interior is ergonomically designed, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue. Famous seats in the industry, with suspension damping, can adjust damping according to body weight, and can be laid down over 135.
Full pilot control
The driving experience is more comfortable and the excavator action is more smooth
With 1.1m³ bucket, it can dig quickly and level the soil with high efficiency.
YC215-9 has good handling performance. The pilot device can make the driver easily complete complex actions and reduce the fatigue of long-term work. A bucket of 0.9~1.1m³ can be selected, which has high digging efficiency and good leveling efficiency.
Easy maintenance
While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.
All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detectionand maintenance.
Specifications
| Excavator Model | YC215 | |
| Basic parameter | ||
| Machine weight | kg | 22300 |
| Bucket capacity | m³ | 0.9~1.1 |
| Width of bucket | mm | / |
| Performance parameter | ||
| Engine model | Yuchai A05 | |
| Engine power | kW/rpm | 140/2200 |
| Max. Gradeability | 35° | |
| Max. digging force of arm | kN | 109 |
| Max. digging force of bucket | kN | 150 |
| Traveling speed | km/h | 3.4/5.2 |
| Max. hauling force | kN | 195 |
| Slewing speed of platform | rpm | 11~13 |
| Operating parameter | ||
| Max. digging height | mm | 10120 |
| Max. digging depth | mm | 6584 |
| Max. digging radius | mm | 9875 |
| Max. digging radius on ground level | mm | 9635 |
| Max. dumping height | mm | 7200 |
| Min. slewing radius | mm | 2965 |
| Max. vertical digging depth | mm | 5822 |
| Max. dozer balde heigh | mm | |
| Mzx. dozer blade depth | mm | |
| Transportation dimension | ||
| Overall length | mm | 9590 |
| Overall width | mm | 2980 |
| Overall height | mm | 3160 |
| Other Parameter | ||
| Width of undercarriage | mm | 2980 |
| Length of track | mm | 4550 |
| Width of track | mm | 600 |
| Height between undercarriage and ground | mm | 470 |
| Height between platform and ground | mm | 1100 |
| Platform tail turning radius | mm | 2873 |
| Length to center of rollers | mm | 3655 |
| Fuel tank capacity | L | 325 |
| Hydraulic oil tank capacity | L | 200 |
| Track gauge | 3655 | |
| Working Pressure | Mpa | 34.3 |
| Ground Contact Pressure | kPa | |
| Arm length | mm | |
| Boom length | mm | |
| Steering head angle | ||
| Flow rate | L/Min | 217x2+19.5 |
Container loading and delivery

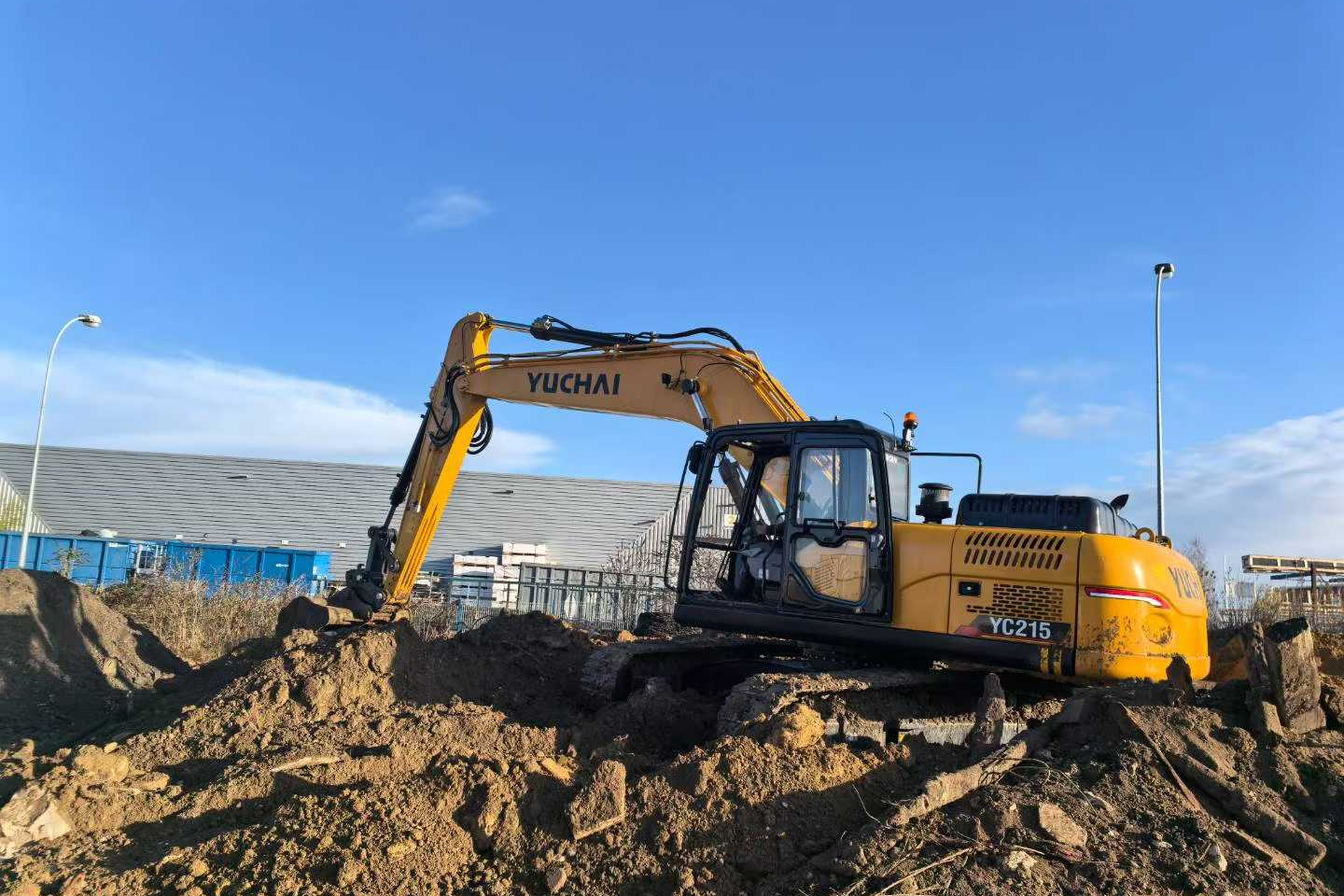

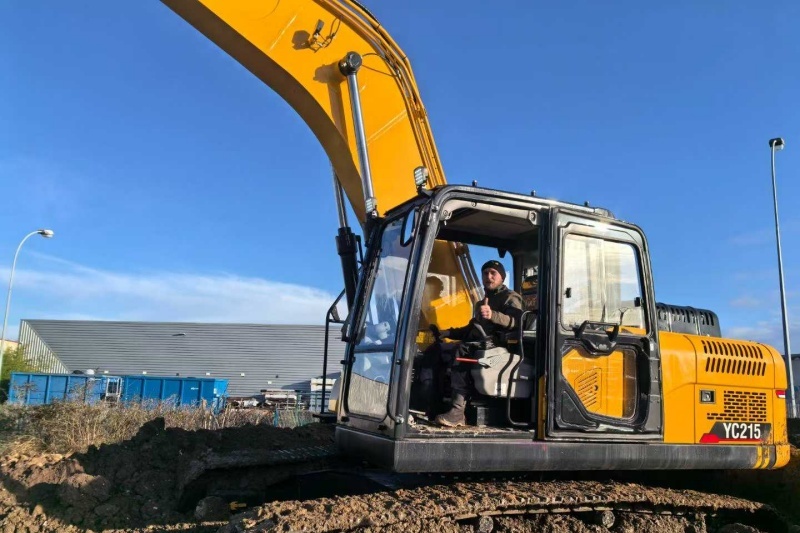

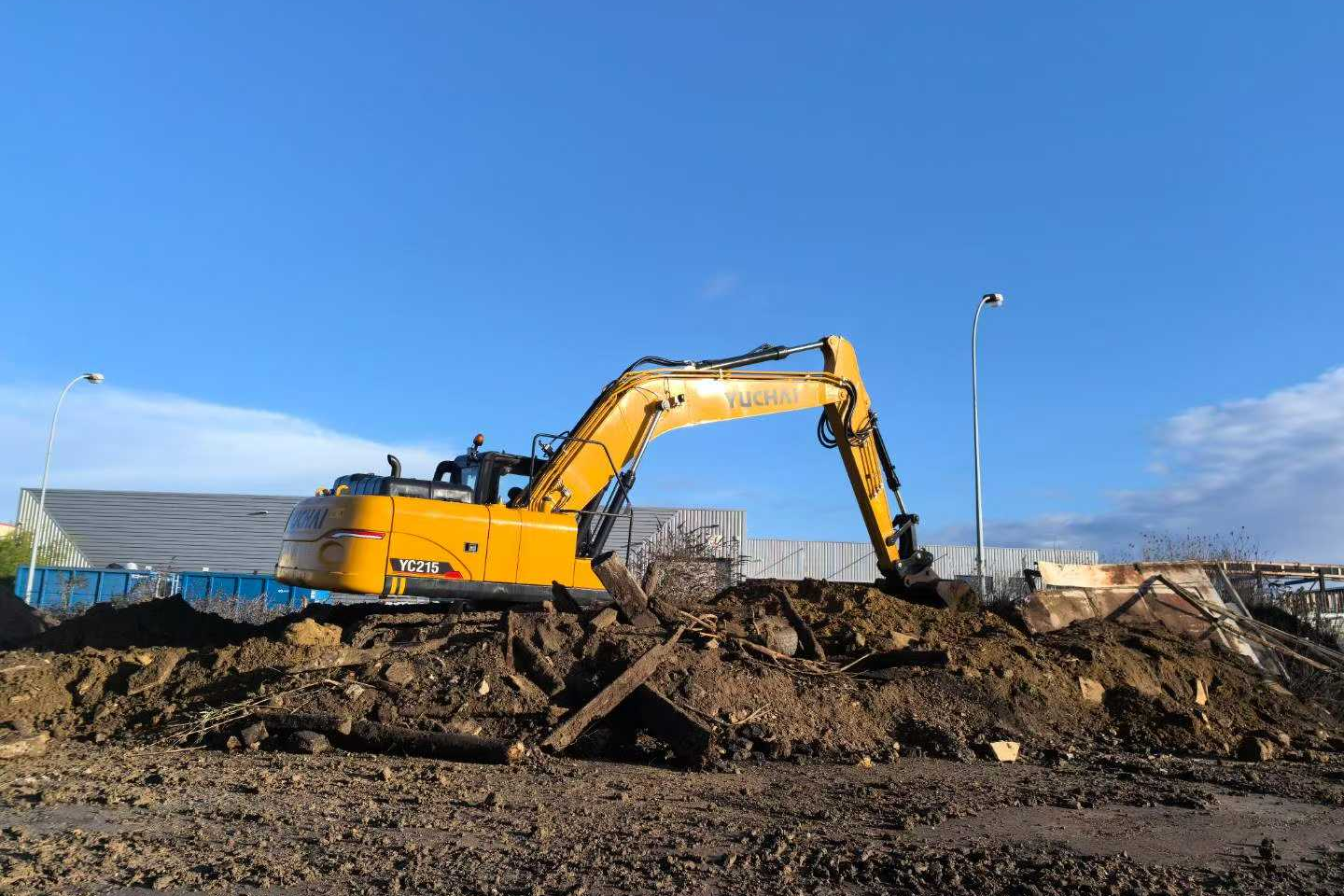

Gallery
