1.Structural Reliability
2.Excellent Performance
3.Fuel saving and high efficiency
4.Brand new large cabin
5.Convenient maintenance
6.Ability to Level Soil Reaches Over 1.5 Meters
Download Brochure
International Brand Engine
Equipped with imported Kubota V2403(30.7KW /2200rpm); Low fuel consumption, low noise, full power and low emission to meet emission regulations.
Upgrade Hydraulic System
The YC60 adopts a three-pump system imported from Japan, featuring an arm regenerative circuit for stable and coordinated operation. It is highly reliable.
Sufficient Traction
YC60 adopts imported walking motor, has strong traction force. Climbing effort up to 35 degrees. System pressure: 24Mpa; Bucket digging strength: 3.6 tons; Suitable for variety complex working conditions.

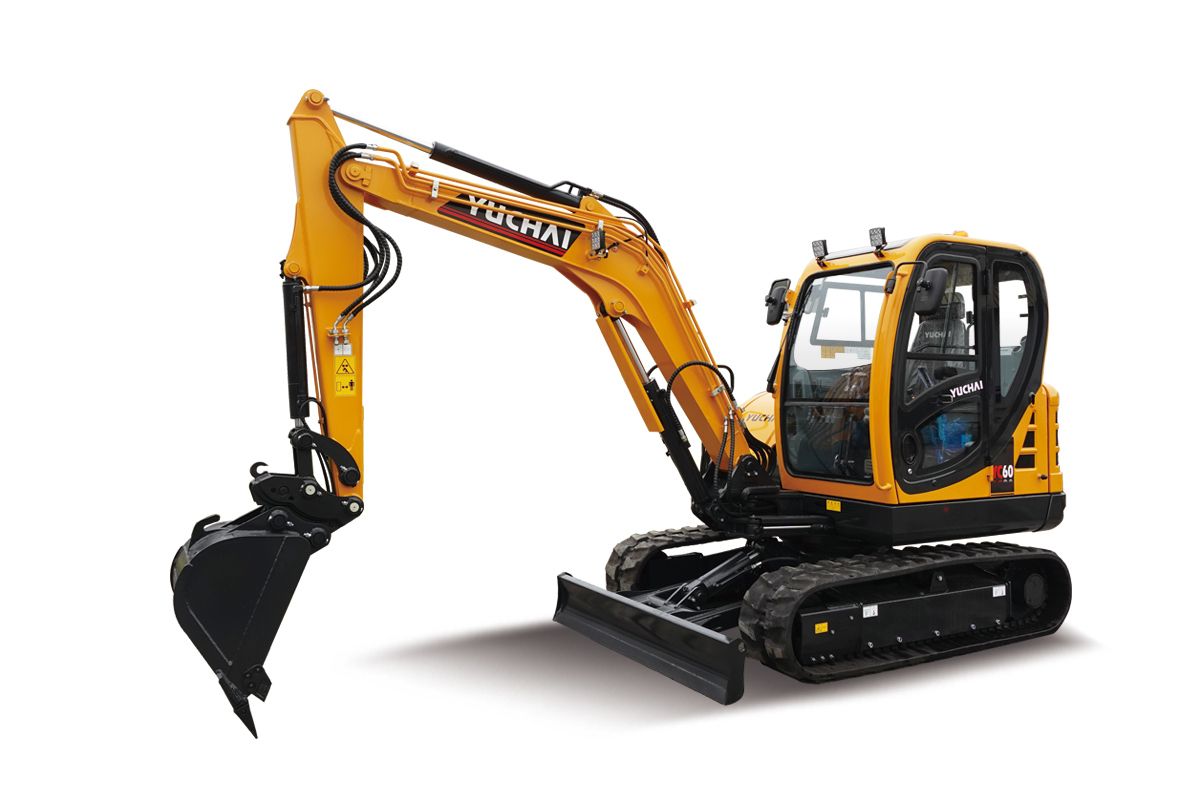

YUCHAI Excavator
Founded in 1989, Yuchai Heavy Industry is the earliest excavator company in China to produce mini excavators and sell them to the world. It is the largest production and export base of small excavators in China and a national high-tech enterprise.
More than 30 years of innovation and development, providing customers with high quality assurance!
The Largest Cab of the Same Tonnage in the Industry
The new shock-absorbing aviation seat realizes step-less adjustment between 50-130kg.The handrail, integrated with the console, adopts a two-stage sliding structure, and seats can adjust back and forth. The opening angle of the chair is > 135°.
Reasonable Layout
Three arranged centralized filters. Front multi-way valve, large fuel tank.
The large fuel tank can satisfy the machine's working for more than 16 hours, reduce refueling burden.
Lower Fuel Consumption
Optimize the power of diesel engine and hydraulic system. Compared with YC60-8, YC60-9 can save fuel consumption up to 30%, and the fuel economy has apparent advantages over peers.
Improve Performance and Level Soil Efficiently
YC60-9 improves the movement coordination, and easily level land over 1500mm. It is easy for novices to master and reduces the labor intensity. In the same conditions, the leveling distance of competing products is less than 800mm. It has significant advantages over peers.
Various Attachments
More than ten types of attachments
Hydraulic hammers, buckets, quick change devices, wood grabbers, simple grab pliers clearing bucket, clamshell bucket, drilling tool, lawn mower, etc.
More than 40 key working conditions are applied, with a wide range of working conditions.
Specifications
| Excavator Model | YC60 | |
| Basic parameter | ||
| Machine weight | kg | 6000 |
| Bucket capacity | m³ | 0.23 |
| Width of bucket | mm | 775 |
| Performance parameter | ||
| Engine model | Kubota V2607 | |
| Engine power | kW/rpm | 30.7/2200/35/2200 |
| Max. Gradeability | 35° | |
| Max. digging force of arm | kN | 27.5 |
| Max. digging force of bucket | kN | 36.6 |
| Traveling speed | km/h | 3.6/2.2 |
| Max. hauling force | kN | 46.5 |
| Slewing speed of platform | rpm | 11~13.5 |
| Operating parameter | ||
| Max. digging height | mm | 5900 |
| Max. digging depth | mm | 3935 |
| Max. digging radius | mm | 6520 |
| Max. digging radius on ground level | mm | 6385 |
| Max. dumping height | mm | 4030 |
| Min. slewing radius | mm | 2685 |
| Max. vertical digging depth | mm | 3370 |
| Max. dozer balde heigh | mm | |
| Mzx. dozer blade depth | mm | |
| Transportation dimension | ||
| Overall length | mm | 6085 |
| Overall width | mm | 1962 |
| Overall height | mm | 2635 |
| Other Parameter | ||
| Width of undercarriage | mm | 1920 |
| Length of track | mm | 2600 |
| Width of track | mm | 400 |
| Height between undercarriage and ground | mm | 335 |
| Height between platform and ground | mm | 720 |
| Platform tail turning radius | mm | 1670 |
| Length to center of rollers | mm | 2060 |
| Fuel tank capacity | L | 122 |
| Hydraulic oil tank capacity | L | 77 |
| Track gauge | 1520 | |
| Working Pressure | Mpa | 25 |
| Ground Contact Pressure | kPa | |
| Arm length | mm | 1699.2 |
| Boom length | mm | 3118 |
| Steering head angle | -- | |
| Flow rate | L/Min | 138.6 |
Container loading and delivery

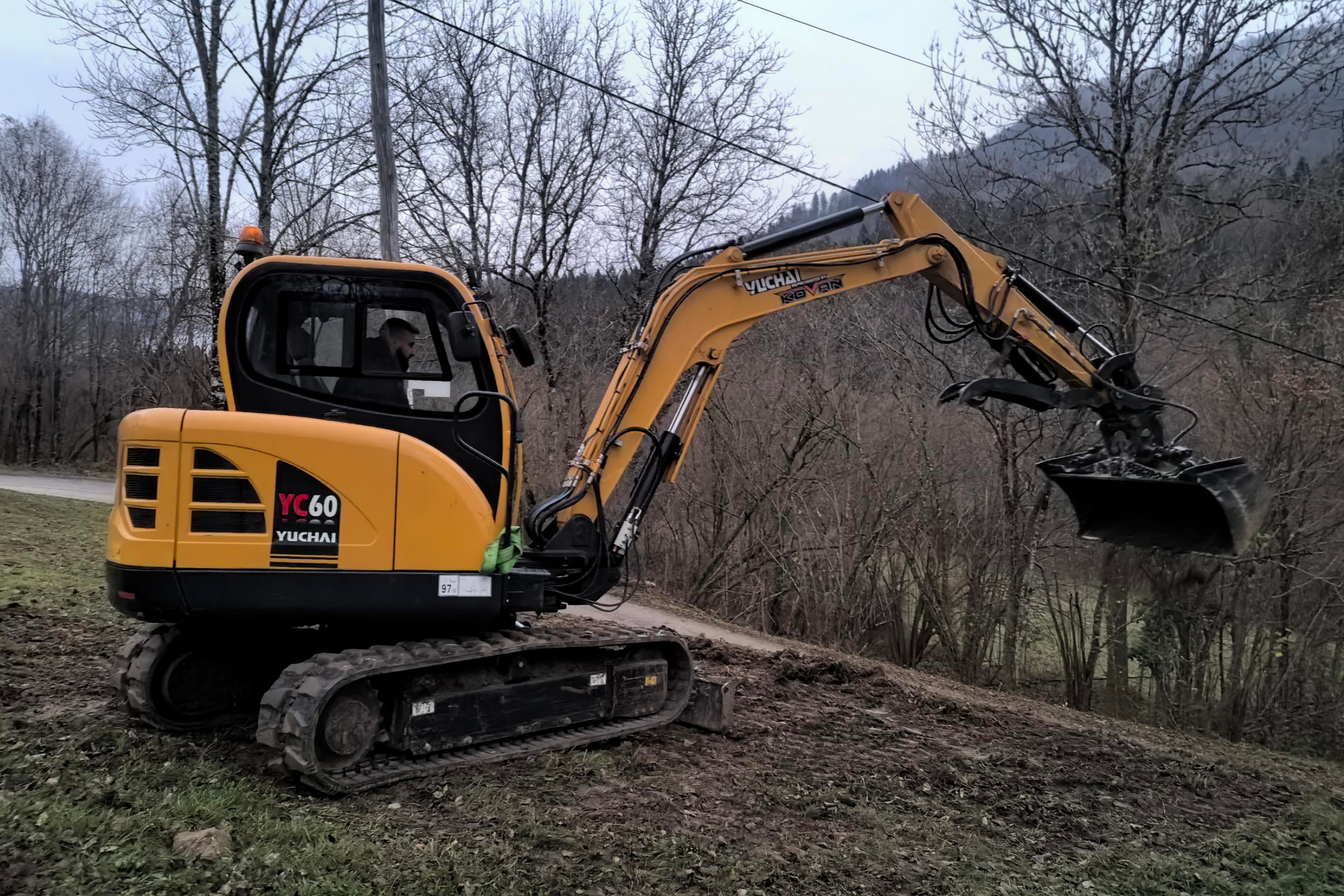

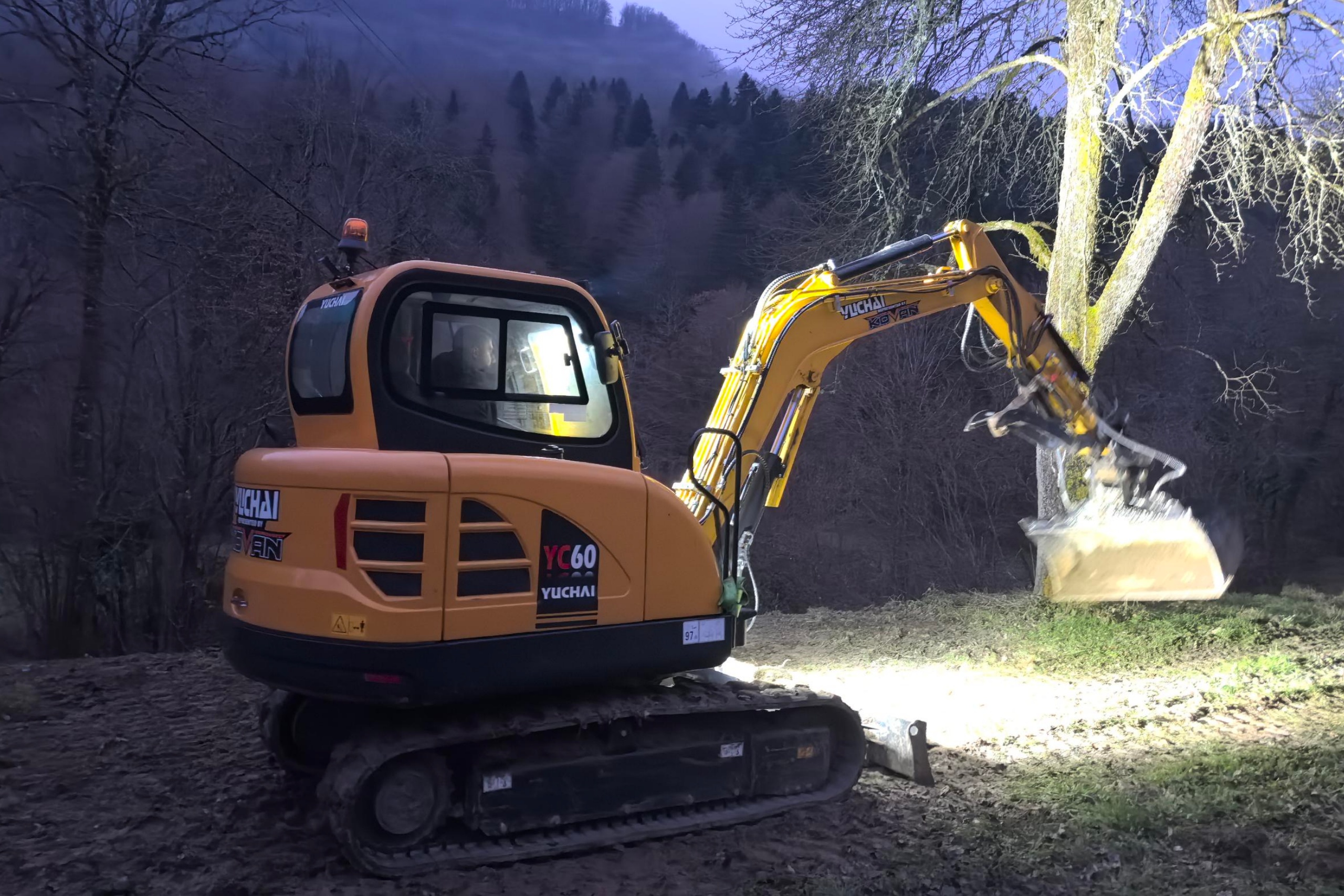

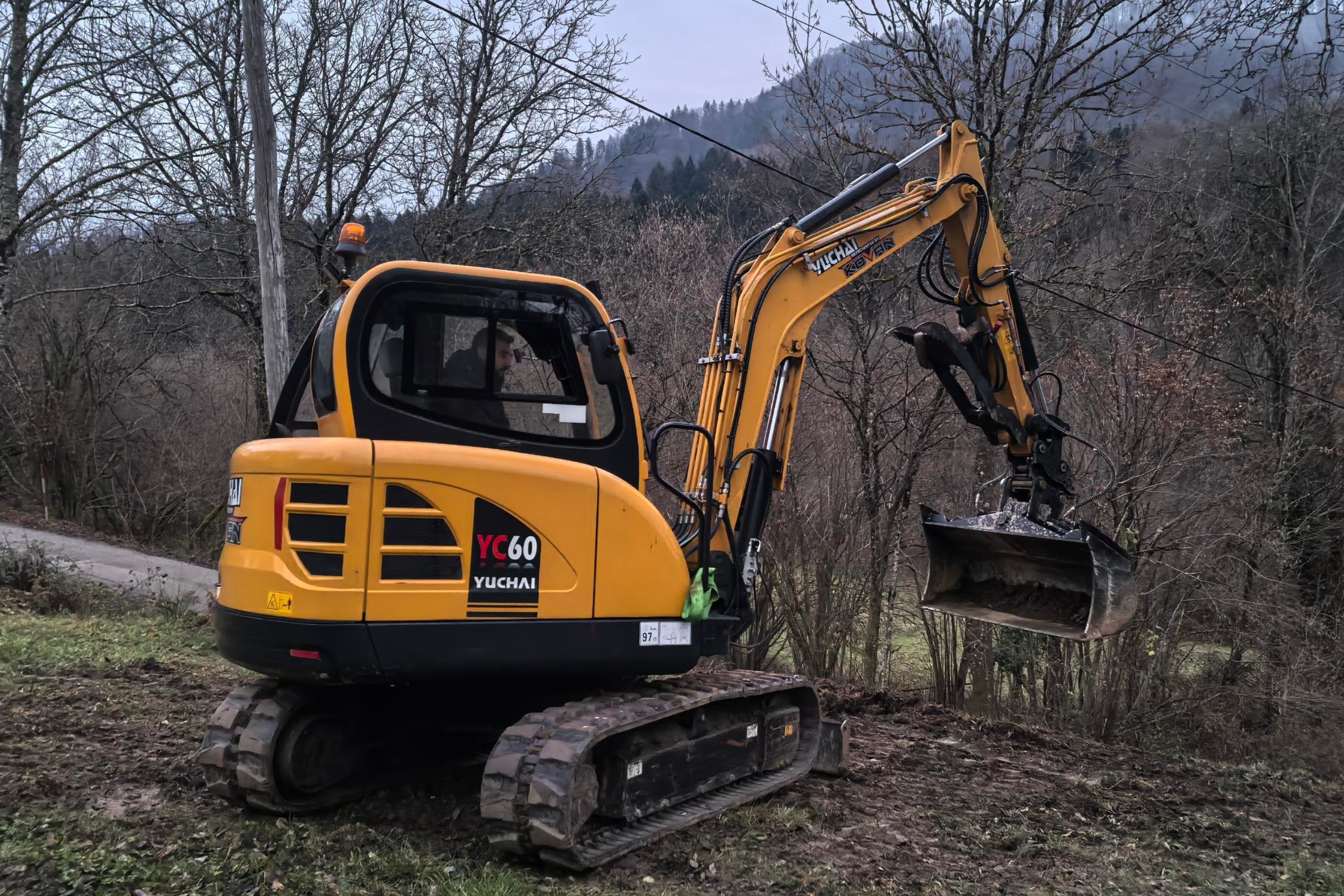

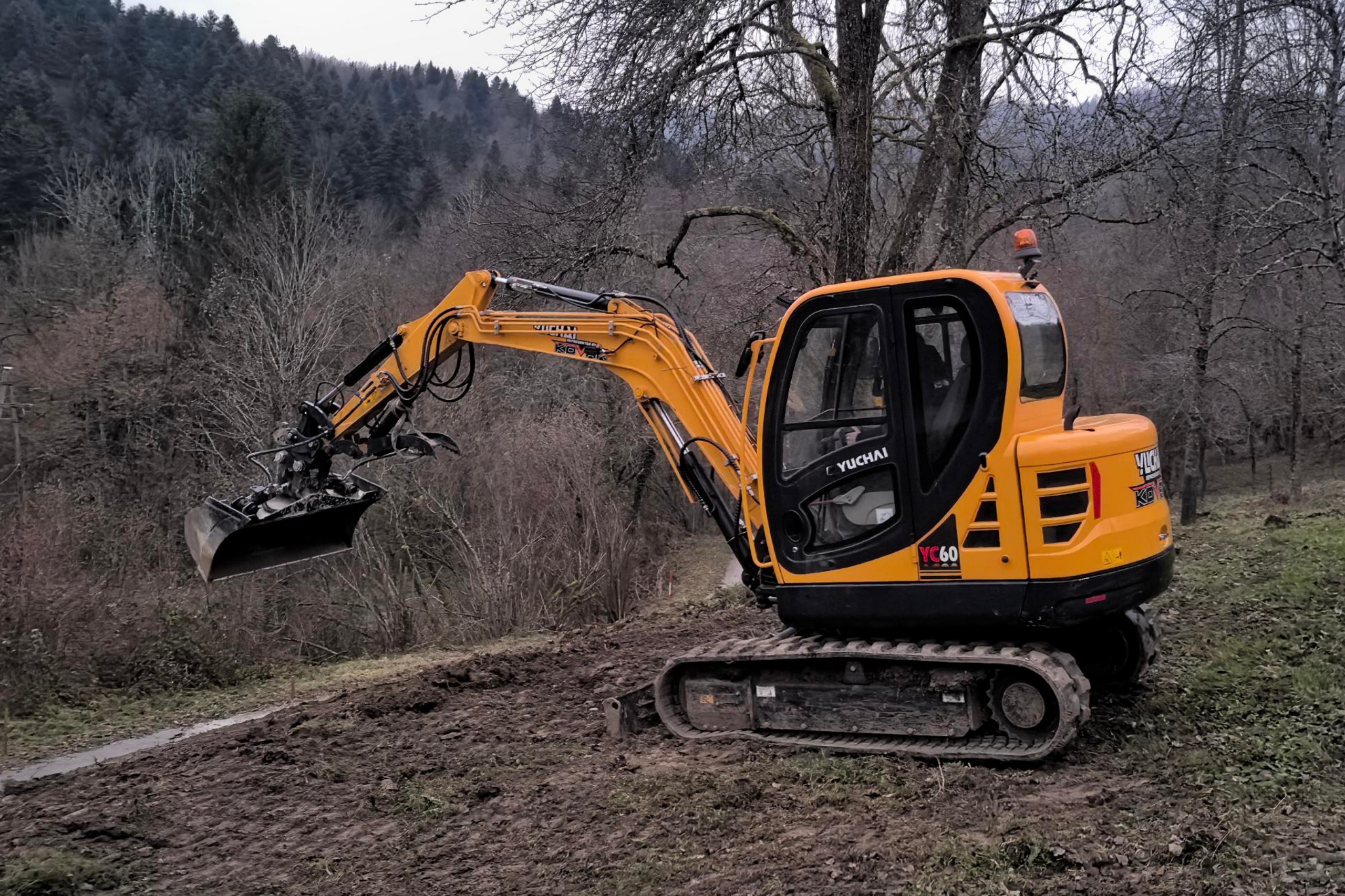

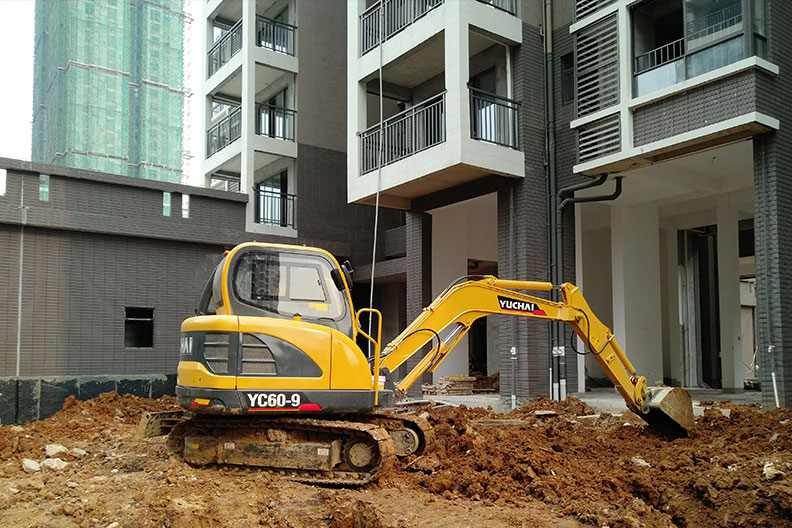

Gallery
